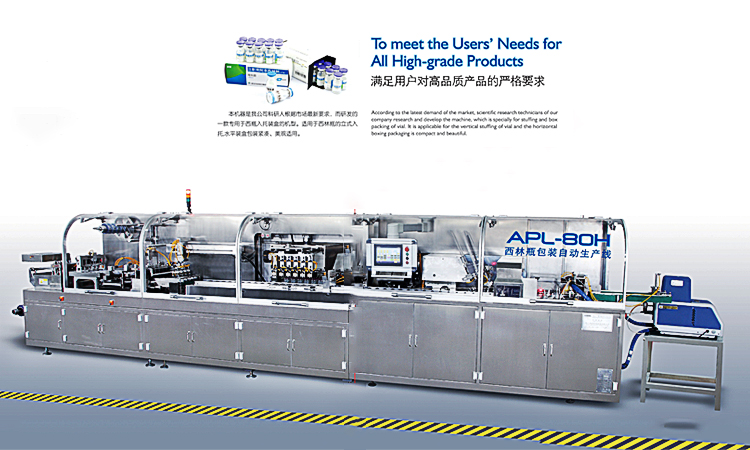

It is suitable for ampoule , vial , oral liquid and other small round bottle. Automatic printing , tray forming and feeding in tray. This machine is an improved product innovated by our company that incorporates pneumatic-photo-electro-mechanic, controlled by PLC and man- machine inter...
点击申请
填写表单
等待审核
联系你
成功
Main features
1. Automatic production line of up and lower heating, positive press forming (tray forming), printing , automatic feeding (feed in tray) and cutting.
2. Equipped with mechanism checking device, eject empty or lack packing tray automatically.
3. Blister forming, heating sealing , lot number embossing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotating the hand wheel and the machine equipped with a staff gauge and tightening nuts for calibration and orientation.
4. It can line with labeling machine in front and cartooning machine in back part, carry out the whole automatic production line.
5. Main transmission part adopts parallel axis and bevel wheel speed reducer, forming , heating sealing and impressing moulds adopt bolt orientating which leads to precise orientation, easy to change moulds and material saving.
Model | DPP-250 | DPP-320 | DPP-350 | DPP-400 |
Cutting frequency (times/min) | 10-30 | |||
Max. Forming Area And Depth (mm) | 240(310/340/390)×140×26mm(standard depth:14) | |||
Travel Range (mm) | 40-150 (Can be lengthened to 180mm as user's requirements) | |||
Air Pressure (Mpa) | 0.4-0.6 | |||
Air Supply (m3/min) | ≥0.35 | |||
Power supply | 380V/220V/50Hz | |||
Total Power(KW) | 6.2 | 7 | 7 | 7.8 |
Main Motor Power (KW) | 1.5 | 1.5 | 1.5 | 2.2 |
PVC rigid Sheet (mm) | 0.25-0.5×250mm(320/350/400) | |||
PTP Aluminum Foil (mm) | 0.02-0.035×250 mm(320/350/400) | |||
Dialysis Paper (mm) | 50-100g×250 mm(320/350/400) | |||
Mould Cooling | Tap Water Or Circulating Water | |||
Overall Dimension (mm) | 3000×730×1600 | 3300×780×1600 | 3300×780×1600 | 3300×840×1600 |
Weight (kg) | 1400 | 1500 | 1600 | 1700 |
1. Technical service: provide free consultation and suggestion, technical support and service by email/fax/telephone and lifetime technical support.
2. Customized service: product development and design according to different customer's different requirements.
3. After-sale service team: technical engineers available to service overseas if needed.
4. Installation: we can arrange engineers to install machines in customer's factory.
5. Maintenance: reply will be given within 48 hours once customer inform us any malfunction happened, we can also arrange engineers to customer's factory to main machines.
6. Training: normal machine is properly adjusted before delivery, you will be able to use the machines immediately and you will be able to get free training advice towards our machine in our factory.
7. Warranty: one year since the date of delivery.
There are multiple models of one type machine , we need to know more details about your products in order that we can recommend the most suitable machine for you. Our questions as below:
1. What's your product ? please send one picture to us
2. What's the dimension or specification of your product ?
3. What's the filling volume of your product ?
4. What's the production capacity of your required machines?
5. If possible , please tell us your production process, we can select the approximate machine according to your requirements.
